Flex Shafts

Customized Flexibility in a Wide Range of Sizes

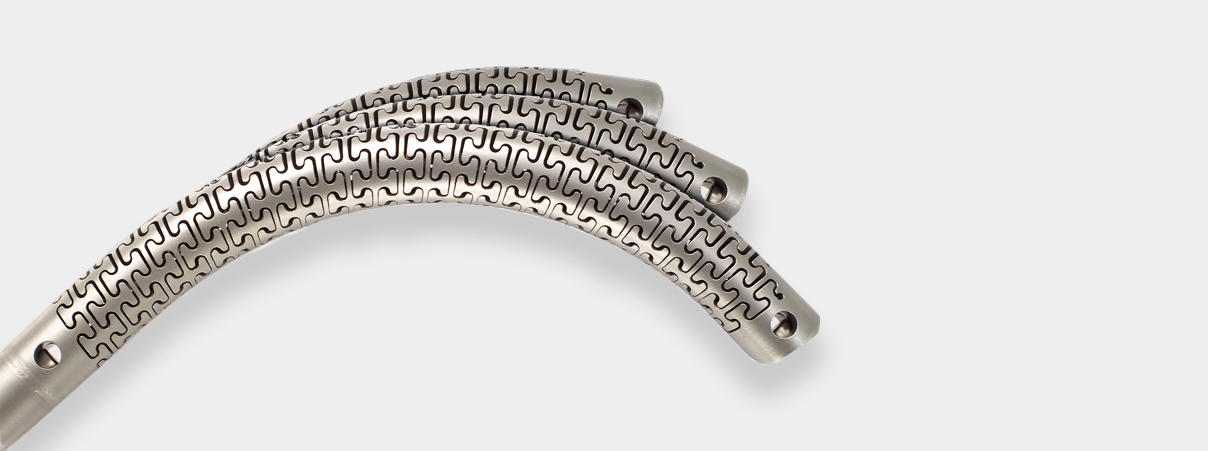

Avalign designs its proprietary Flex Technology to fit a wide variety of segment sizes and bend angles. With capabilities in standard and legacy measurements, you can easily source flexible shafts for a wide range of applications. Our flex shafts adhere to the same high standards of quality and design that you expect from Avalign’s innovative Flex Technology, and our dedicated service teams assist at every point along the way to shorten lead times and ensure on-time delivery.

Learn how Avalign can help you customize flexible shafts efficiently. Find an Avalign sales representative for more information and custom quotes.


Standard Flex Segements - English - 90 Degrees Bend Angle

Material OD ID UTS Part Number
17-4 0.125" 0.051" 12 in-lb F_E-174- 125-051
17-4 0.187" 0.063" 41 in-lb F_E-174- 187-063
17-4 0.187" 0.085" 39 in-lb F_E-174- 187-085
17-4 0.202" 0.124" 41 in-lb F_E-174- 202-124
17-4 0.250" 0.085" 97 in-lb F_E-174- 250-085
17-4 0.250" 0.098" 96 in-lb F_E-174- 250-098
17-4 0.250" 0.118" 93 in-lb F_E-174- 250-118
17-4 0.250" 0.124" 92 in-lb F_E-174- 250-124
17-4 0.250" 0.134" 89 in-lb F_E-174- 250-134
17-4 0.312" 0.134" 185 in-lb F_E-174- 312-134
455 0.250" 0.085" 116 in-lb F_E-455- 250-085
455 0.250" 0.098" 114 in-lb F_E-455- 250-098
455 0.250" 0.134" 106 in-lb F_E-455- 250-134
455 0.312" 0.134" 220 in-lb F_E-455- 312-063
465 0.187" 0.063" 53 in-lb F_E-465- 187-063
465 0.187" 0.069" 52 in-lb F_E-465- 187-069
465 0.187" 0.098" 49 in-lb F_E-465- 187-098
465 0.250" 0.098" 125 in-lb F_E-465- 250-098

OD - Outer Diameter, ID - Inner Diameter, UTS - Ultimate Torque Strength Estimate


Legacy Flex Segements with Flanges - 90 Degrees Bend Anlgle

Material OD ID UTS Bend Angle Part Number
17-4 .188" .075" 41 in-lb 60¡ 04-8119- 0188-01
17-4 .250" .090" 97 in-lb 90¡ 04-8119- 0250-01
17-4 .250" .090" 97 in-lb 60¡ 04-8119- 0250-02
17-4 .250" .090" 97 in-lb 30¡ 04-8119- 0250-03
17-4 .281" .125" 134 in-lb 90¡ 04-8119- 0281-01
17-4 .281" .125" 134 in-lb 60¡ 04-8119- 0281-02
17-4 .281" .125" 134 in-lb 30¡ 04-8119- 0281-03
17-4 .375" .125" 330 in-lb 90¡ 04-8119- 0375-01
17-4 .375" .125" 330 in-lb 60¡ 04-8119- 0375-02

OD - Outer Diameter, ID - Inner Diameter, UTS - Ultimate Torque Strength Estimate
